Maize Cleaning Equipment

Vibrating Separator for Maize Seed Cleaning


Vibrating Separator

With the capacity of sifting the rough and fine impurities for maize processing equipment, this vibrating separator is equipped with tail end aspiration or air recycling aspirator which can reach a combined function that allows cleaning out the low-density particle.

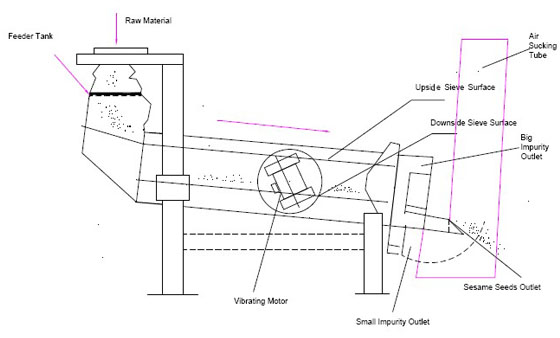

Vibrating Separator sketch

Model Capacity (t/h) Power (kw) Weight (kg) Dimensions (mm)(L×W×H)
Pre-cleaning Cleaning
TQLZ80×100 20 6 2×0.25 360 1440×1610×1455
TQLZ100×100 30 8 2×0.25 420 1640×1610×1455
TQLZ100×150 50 12 2×0.37 520 2140×1610×1455
TQLZ100×200 60 16 2×0.37 540 2640×1610×1455
TQLZ150×150 75 18 2×0.55 630 2140×2160×1455
TQLZ150×200 100 24 2×0.75 650 2640×2160×1455
TQLZ180×200 120 26 2×1.1 1000 2740×2510×1980


Rotary Flat Sieve Rotary Flat Sieve for Maize Processing

With the capacity of sifting the rough and fine impurities for maize seed cleaning process, the rotary flat sieve is equipped with tail end aspiration or air recycling aspirator which can reach a combined function that allows cleaning out the low-density particle.

Model Power(kw) Capacity(t/h) Weight(kg) Dimensions(mm)(L*W*H)
TQLM63 0.55 2-3 500 1355*936*946
TQLM80 0.75 3-5 635 2120*1265*1645
TQLM100 0.75 5-8 750 2120*1465*1645
TQLM125 1.1 8-12 885 2120*1715*1645
TQLM160 1.5 12-16 996 2120*2065*1645


Seed Destoning

Destoner


The machine works for continuously separating stone, bits of glass and metal, etc, it is a good cleaning equipment.

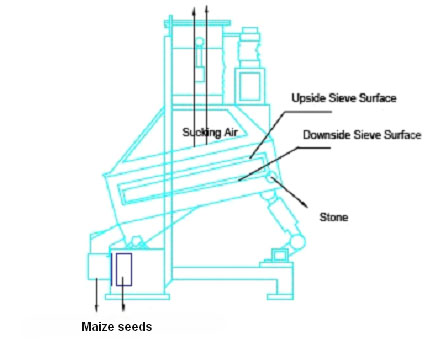

Gravity Destoner sketch

Model Power(kw) Capacity(t/h) Air Suction(m3/h) Air Pressure Weight(kg) Dimensions (mm)L*W*H
TQSX100 2*0.25 3-5 4500 <980 400 1550*1130*1810
TQSX150 2*0.25 5-9 8000 <980 500 1550*1630*1810
TQSX200 2*0.25 9-16 12000 <980 610 1500*2130*1810
